Digital fanatics and hobbyists could be concerned with a brand new arrival within the Adafruit on-line retailer within the type of the Adafruit MOSFET Motive force. Designed to stay Sparky the Blue Smoke Monster at bay the tiny board can be utilized with each Arduino and Raspberry Pi initiatives due to its skill to be attached without delay to a GPIO pin.

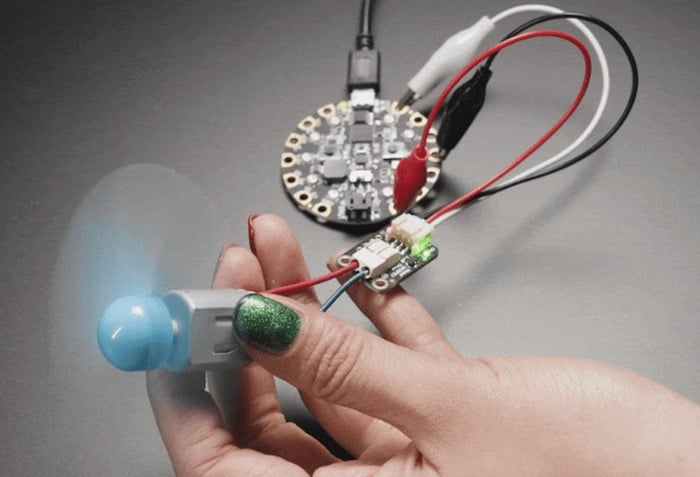

The MOSFET Motive force board has a easy plug-and-play JST PH (2mm pitch) enter connector for solderless use. Supply energy (from 3V as much as 30V) and sign (3V to 20V good judgment degree). At the output are two-output terminal blocks, with one block attached to energy and the opposite switched to flooring when the sign degree is excessive. In between is an AO3406 N-Channel MOSFET rated for 30Vds, 3.6A height, and 70mΩ RdsOn plus a 1N4007 flyback diode. The tiny but tremendous helpful board is now to be had to buy priced at $3.95
Adafruit MOSFET Motive force
“Sparky the Blue Smoke Monster presentations up on every occasion the magic smoke is let move of an digital part. And his very favourite is on every occasion other people first get started with electronics and robotics: wiring up a motor or solenoid or excessive energy LED is an ideal recipe for purchasing that blue smoke out of an Arduino or Raspberry Pi. Why? As a result of those high-current gadgets can’t be attached without delay to a GPIO pin on a microcontroller! They wish to have a transistor / MOSFET driving force, plus a kickback-protection diode that can soak up the inductive ‘kick’ brought about by means of turning on-and-off motors and solenoids. With out that driving force and diode – your ‘tronix will move poof!”
“Magic smoke (also known as manufacturing facility smoke or blue smoke) is smoke produced by means of malfunctioning digital circuits. The origins of the magic smoke have transform a working in-joke that began amongst electric engineers and technicians ahead of it was once extra just lately followed by means of pc programmers. The true starting place of blue smoke is the black plastic epoxy subject matter this is used to bundle maximum commonplace semiconductor gadgets equivalent to transistors and built-in circuits, which produces a bluish colored smoke all over combustion. Smoke from different elements that don’t use this epoxy might range in color, however nonetheless be recognized as the similar phenomenon for functions of the comic story.”
Supply : Adafruit
