Raspberry Pi fans looking for slightly inspiration for his or her subsequent undertaking could be concerned about an improbable far off regulate mini Mars rover robotic created via Nikodem Bartnik. Who designed the robotic rover from scratch the use of 3-D printing portions and CNC machining all designed in CAD. Powered via a Raspberry Pi Pico W mini PC it’s conceivable to regulate it thru a Wi-Fi connection and easy Python script.
“Attracted via Raspberry Pi Pico W’s integrated Wi-Fi and the facility to program it in MicroPython, Nikodem Bartnik knew he needed to make a undertaking with one, however wasn’t positive precisely what. Inspiration struck when he attended a CubeSat Summer time College in Belgium. On a seek advice from to the Euro House Middle, he noticed a box with mini Mars rovers.
Nikodem was once made up our minds to make his undertaking as blank and small as conceivable “for aesthetics causes, but additionally for its protection and capability,” he underlines. He additionally sought after so that you could proportion his paintings with others and make it simple to copy, so he selected to make his personal customized PCB, the use of an inexpensive CNC device he’d changed. “The most productive section about this setup is: within the morning I design a PCB and, via the afternoon, I’ve it in a position for soldering.” – says the Raspberry Pi site.

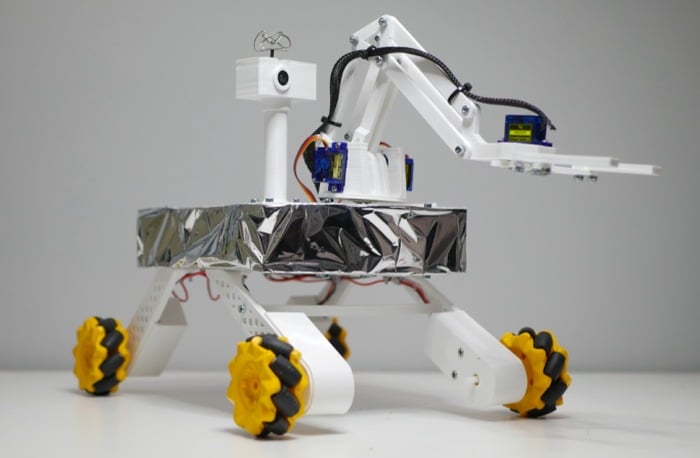

Raspberry Pi Mars rover robotic
Nikodem Bartnik explains extra in regards to the undertaking.
“All portions have been designed in this kind of approach that you’ll print them on the most well liked FDM 3-D printers and also you don’t want an enormous construct plate,” he says. “The ground plate was once machined on my DIY CNC device – IndyMill… The main of the way it works may be very easy; designing and 3-D printing it’s not.”
“For controlling the micro servo motors, I’m merely the use of 50Hz PWM sign. For DC motors I’m the use of standard and inexpensive drivers, L298N, and regulate them thru PWM and virtual pins,” he explains. He additionally added an FPV digital camera machine to the construct, which grew to become out to be some distance more effective than he’d imagined. “I had no enjoy with FPV techniques earlier than; it was once totally new to me, however it grew to become out to be super-straightforward and it really works nice.”
For more info leap over to the authentic Raspberry Pi mag site via following the hyperlink under.
Supply : MagPi
