If you need to construct your very personal open supply cartridge reader you could be occupied with a mission created via a neighborhood of unfashionable avid gamers to create a very easy to construct and simple to change cartridge dumper. The cartridge reader can be utilized to get entry to all kinds of various cartridges together with NES, Famicom and Circle of relatives Fundamental cartridges and helps Mapper 30/NESmaker and flashes INL NM30 forums. For a complete listing of all supported cartridges bounce over to the GitHub mission web page.
Options of the Open Supply Cartridge Reader come with an absolutely stand-alone resolution that doesn’t require a pc to function. Until you need to replace the firmware. The device is simple to change because of its open supply code, enabling you to write down your personal extensions and simply percentage them with others if desired. The moveable device includes a rechargeable battery and can also be powered from an exterior energy financial institution if desired and includes a modular design the usage of off-the-shelf elements.

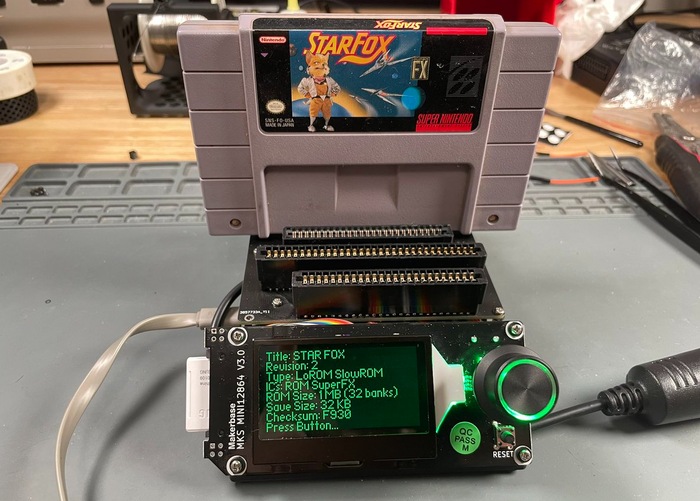

Open Supply Cartridge Reader
“At the aspect there are two switches. One turns the OSCR On and OFF and the opposite selects between 5V or 3.3V. Each the Arduino Mega and the sport cartridge will likely be run at that voltage to make sure correct voltage ranges always. On the entrance there’s a standing LED that blinks right through longer operations to sign that the Cart Reader continues to be doing one thing.”
“The picture LCD display presentations the entire menus and cartridge infos, the picture rotary encoder can also be became left/proper and pressed to make and ensure a variety, the picture reset button restarts the Cart Reader and the picture SD slot helps FAT, FAT32 and exFAT SD playing cards. You wish to have to duplicate the information discovered within the SD listing of the present liberate to the foundation of the SD card.”
Supply : Adafruit : GitHub : Twitter
