For any given processor it’s most often simple to discover a statistic at the selection of transistors used to build it, with the well-known Intel 8086 CPU most often mentioned to comprise 29,000 transistors. That is the place [Ken Shirriff] bumped into a subject when he sat down sooner or later and began counting person transistors in die photographs of this processor. To his dismay, he got here to a complete of nineteen,618, that means that 9,382 transistors are in some way unaccounted for. What’s going on right here?
The first level here’s that the given quantity comprises so-called ‘attainable transistors’. Inside of a bit of read-only reminiscence (ROM), a ‘0’ could be a lacking transistor, however relying at the programming of the masks ROM (e.g. for microcode as with a CISC x86 CPU), there can be a transistor there. When including up the possible however vacant transistor places in ROM and PLA (programmable good judgment array) sections, the overall rely got here to 29,277 attainable transistors. That is a lot nearer to the certainly properly rounded selection of 29,000 this is most often used.

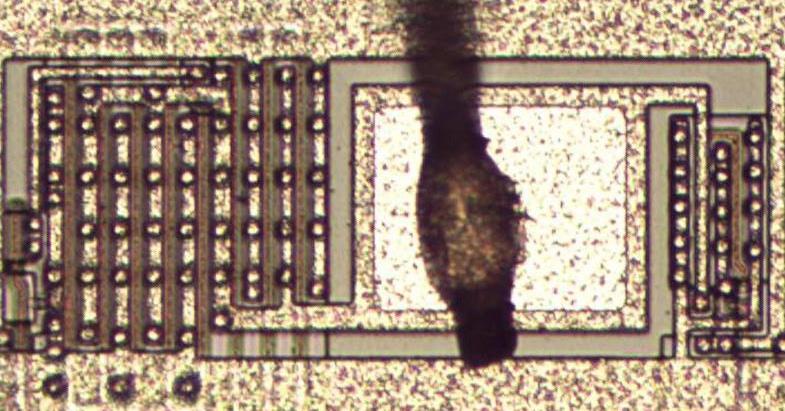

[Ken] additionally notes that additional headaches listed below are options akin to motive force transistors which might be recurrently discovered close to bond twine pads. In order to extend the present that may be supplied or sunk via a pad, more than one transistors will also be grouped in combination to shape a unique motive force as within the above symbol. In the meantime but different transistors are used as (enter coverage) diodes and even resistors. All of which makes the transistor rely in conjunction with the method node used helpful essentially as indication for the bodily dimension and complexity of a processor.
