3D printing fanatics having the ability to observe simply how much 3D printing filament they have left on their spools. Could be eager about an new Arduino undertaking that permits you to simply see precisely how much filament is left with out the will for any further device or programs. The at hand show will also be hooked up for your 3D printer and offers show and makes use of a scale to supply a correct calculation of precisely how much filament stay to your spool. The undertaking has been created by means of Instructables member InterlinkKnight and has been kindly printed for you to make your self.
3D printing filament observe

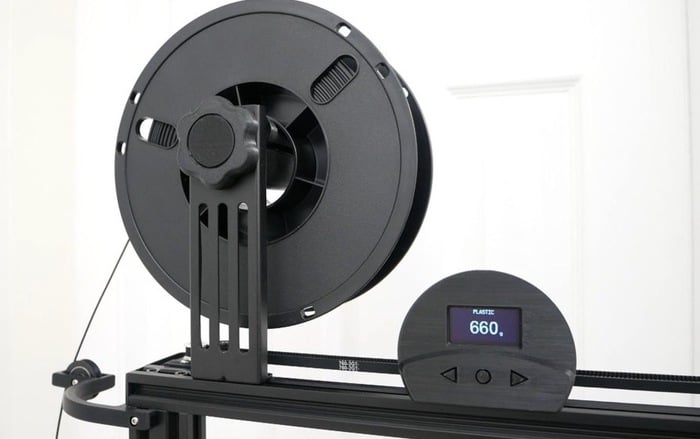

“That is my DIY filament holder with an built-in scale for my 3D printer, the usage of arduino, a load cellular and an OLED show. The principle distinction between this and a commonplace scale is this tool has the chance so as to add a couple of profiles to retailer other Tare values in order that means we will measure best the burden of the remainder filament except the burden of the empty spool, as a result of every logo of filaments has a unique weight and subject matter for the spool itself.”
Options :
– It will probably measure weights from 10g to 9999g.
– There are 3 buttons (LEFT, ENTER, RIGHT) that can be utilized for scrolling thru other profiles and navigate in the course of the menu gadget.
– You’ll be able to upload, edit and delete profiles the usage of the menu gadget. It will probably retailer as much as 20 profiles, with their very own title and Tare price. Most 21 characters for the title of every profile.
– You’ll be able to do a complete calibration for the weight cellular the usage of the menu gadget, so there’s no wish to edit the cartoon by any means.
– Configurable deadzone with real-time studying at the show. The deadzone is helping ignoring the fluctuations of the consistent pulling/pushing of the filament within the 3D printer so we display probably the most sensible estimate of the particular weight left within the spool.
– All of the settings are saved within the EEPROM so it’s going to keep in mind the entire settings after powering the tool off.
– There’s an choice within the menu to FACTORY RESET arduino for clearing the EEPROM (consumer information).
– Auto-center the tittle textual content in the principle/commonplace display ignoring areas to the suitable.
– When including a brand new profile, it’s going to avoid wasting the brand new profile after the present profile so the order will also be organized in a predictable means. To make this paintings it required numerous effort so even supposing you may take this as a right, it’s no longer a trivial function.
– When powering ON, converting profiles or getting back from the menu, it presentations the burden beginning on the decrease fringe of the deadzone so the tool is able to measure the lower of weight of the filament in an instant.
– No timeout for being at the menu. Sure, that’s proper, it is a function. Why? I hate timeouts that may go out the menu if no operation is completed after a couple of seconds, however I feel that could be a dangerous design that reasons rigidity and frustration as a result of you really feel like you wish to rush issues with the specter of having to begin in every single place from the start. You don’t seem to be going to seek out anything else like that during right here.
The Arduino weblog writes :
“Each standard slicer in the marketplace will supply a moderately correct estimate of the quantity of filament (in mass and period) {that a} process would require. To decide if you have sufficient filament, you simply wish to know the period of the filament left at the spool or its weight. Working out the period is sort of unimaginable except you monitor the feed over the years, however it’s simple to weigh the filament. So long as you can subtract the burden of the spool (set the tare), you can decide if you have sufficient filament. This tool each weighs the present spool and subtracts the tare.”
For more info and whole directions on how to construct your very personal, bounce over to the reliable Instructables undertaking web page by means of following the hyperlink beneath.
Supply : AB : Intsructables
