YouTuber and Raspberry Pi fanatic Michael Klements has constructed an overly distinctive case for the superior mini PC made totally from lovers. The builder includes a Ice Tower Cooler, suited for a Raspberry Pi 4B within the case and lines 24 5v lovers. Take a look at the video under to be told extra in regards to the construct and the fascinating effects whilst you use such a lot of lovers to chill your Raspberry Pi mini PC.
“Each time I’ve made a brand new case for my Raspberry Pi, there are at all times a couple of feedback suggesting including any other fan or bettering the cooling, so lately I’m going to position those ideas to the take a look at through construction a case that has as many lovers as imaginable to determine if extra lovers truly lead to decrease CPU temperatures.”

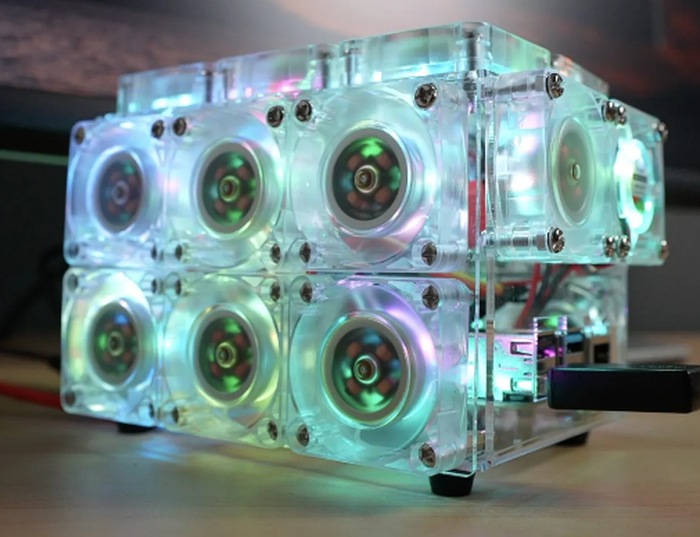

Raspberry Pi case from lovers
“On this video, I’m going to construct a case for my Raspberry Pi the usage of as many 5V lovers as imaginable to peer if extra cooling is needed for higher efficiency. This can be a vital step up from the standard unmarried fan and Ice Tower that I take advantage of on my same old Raspberry Pi desktop case design.
To start out off, I needed to figure out what number of lovers I’d want. Each and every fan is a sq. of 40mm and is 11mm deep, and a Raspberry Pi is 85mm lengthy and 56mm broad. So that you could duvet the overall duration of the Pi with the SD card sticking slightly out the again we’re going to want 3 lovers, and to hide the width we’ll want 2 lovers.
We additionally want a little of top to depart house for the Ice Tower on most sensible of the Pi, so I’m going to make it two lovers top. I’m now not going to position any lovers beneath the Pi as they’re limited through the table and there’s not anything to chill at the backside.”
“I’m going to run each and every take a look at on the Pi’s base frequency of one.5Ghz and I’ll then overclock the Pi to two.2Ghz and notice how that has effects on the temperatures. For each and every, I’ll be beginning at room temperature, which is ready 25 levels, and I’ll run a software known as CPU burn which maxes out the Pi’s 4 cores and I’ll depart this working till the temperature stabilises or we commence thermal throttling.”
Supply : Adafruit : DIY Existence
